Tutorial: carbon fiber MINI F55/F56/F57 Rear Extractor Challenge or Pro
Here you will find the assembly tutorial of our carbon fiber extractor , but above all you will find assembly aids even if you have the original exhaust (or exhaust with the side belly)
FITTING INSTRUCTIONS:
The first thing you have to do is to remove the OEM diffuser as you can see here below:
To install it correctly you have to cut off the rim around the OEM bumper.
NOW YOU’RE READY TO FIT IT!
For a correct fitting we suggest to use bi-adhesive 3M tape or specidic glue
(in addition to the screws)
If you have a MINI F55
You must create a small connection extension as you can see in the attacched photo.
CONGRATULATIONS!!
THE REAR EXTRACTOR IS INSTALLED!
TO MOUNT THE RSI c6 REAR EXTRACTOR,
DO I HAVE TO CHANGE THE ORIGINAL EXHAUST?

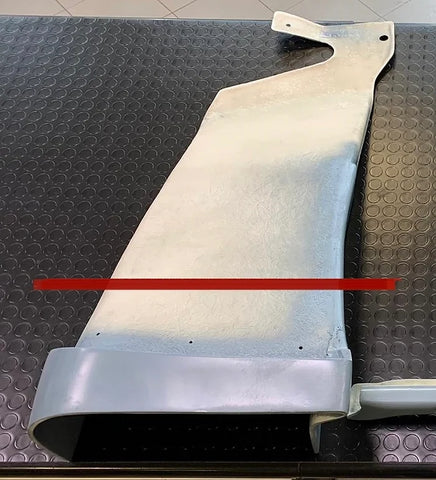

By cutting the extractor as indicated in the image on the side (the dimensions are not indicated as the measure depends on the exhaust installed) you can install our rear extractor even if you have an exhaust with side flank
CONGRATULATIONS!!
THE REAR EXTRACTOR IS INSTALLED!

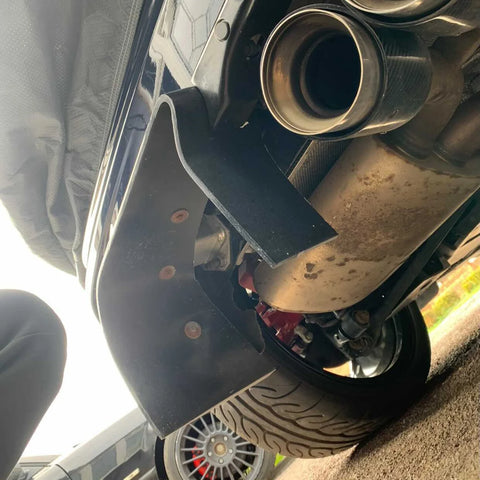

Here you will find a small video where you will see our rear extractor challenge fiberglass version mounted with this small modification
