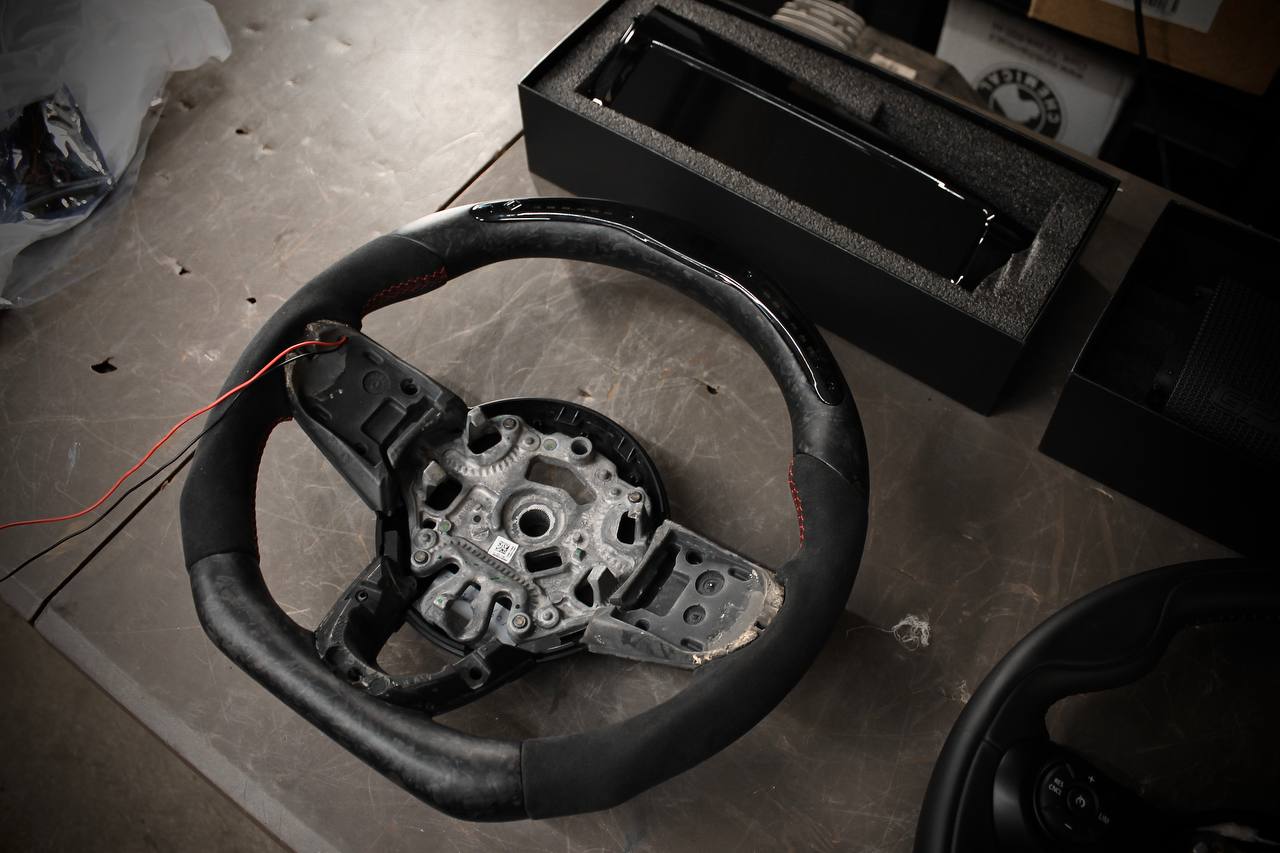

How to Install Your RSI c6 Carbon Fiber Steering Wheel – Complete Tutorial
Upgrading to a carbon fiber steering wheel from RSI c6 is not only about performance – it’s also about style, comfort, and a superior driving experience. Whether you're going for a basic model, one with a LED display, or even heated options – here's a complete installation guide for every version.
Disclaimer: Installation should be carried out by a qualified professional. RSI c6 is not responsible for damage due to improper installation.
🛑 Installing a Standard Carbon Fiber Steering Wheel
(No LED, No Heater)
Tools You’ll Need:
- Allen keys
- Socket wrench (usually 22mm or 24mm)
- Screwdriver
- Steering wheel puller (if needed)
- Electrical tape & zip ties
Installation Steps:
1️⃣ Disconnect the battery
- Remove the negative terminal and wait at least 10 minutes to avoid airbag activation ⚠️
2️⃣ Remove the OEM steering wheel
- Unscrew the bolts behind the wheel to remove the airbag, then gently unplug all connectors.
- Use a wrench to loosen and remove the center nut.
- If the wheel is stuck, use a puller to detach it.
3️⃣ Install your new RSI c6 steering wheel
- Mount the appropriate hub or adapter, making sure it aligns correctly.
- Re-tighten the center nut to factory torque spec.
- Attach the new wheel using the supplied hardware.
- Reconnect the battery and test the horn and buttons.
You're done! Enjoy the upgraded look and feel of your RSI c6 carbon wheel!
🛑 Installing a Carbon Fiber Steering Wheel
with LED Display
If your RSI c6 wheel includes an integrated LED display, follow these additional steps:
LED Setup Steps:
1️⃣ Find a power source:
- Use an ignition-switched 12V source like the OBD-II port or a fuse tap.
2️⃣ Connect the LED wires as instructed
-
Each display has different wiring based on vehicle model. Follow the user manual carefully.
-
Ensure the power supply is clean and stable. Use heat shrink tubing or proper connectors.
3️⃣ Secure the wiring neatly
- Use zip ties and route the cables behind trim panels. Avoid moving parts or heat sources.
4️⃣ Reconnect the battery and test
- The LED display should light up on ignition and show RPM, shift lights, or other data depending on the model.
Pro tip: If your display includes Bluetooth, pair it with your phone app (if applicable) for full configuration.
🛑 Installing a Heated Carbon Fiber Steering Wheel
(No Built-In Connector)
If your new RSI c6 steering wheel has a heating function, but does not come with a heater connector, don’t worry – you can transfer the original one.
Steps for Heater Wiring:
1️⃣ Remove the OEM wheel
- Follow the same steps as in Section 1.
2️⃣ Cut and transfer the OEM heating connector
- Locate the original heater wiring in your stock wheel. ✂️
- Cut the plug, leaving enough wire on both sides.
- On the new RSI c6 wheel, locate the heater wires.
- Match and connect the wires from the original plug to the new wheel.
- Use proper soldering or secure crimp connectors, and insulate with electrical tape.
3️⃣ Reinstall and test
- Reinstall the new wheel.
- Reconnect the battery.
- Activate the heater and verify functionality (some vehicles may show a warning if the heater circuit is incorrect).
Note: Always double-check wire polarity and connector orientation to avoid electrical issues.
Final Thoughts
Installing a carbon fiber steering wheel from RSI c6 adds a bold, performance-driven look to your cockpit. Whether you’re going with a sleek basic wheel or a full LED + heater combo, proper installation is key to getting the most out of your upgrade.
